My support for CBC America CCTV Equipment

CBC America NVR Hardware & Software

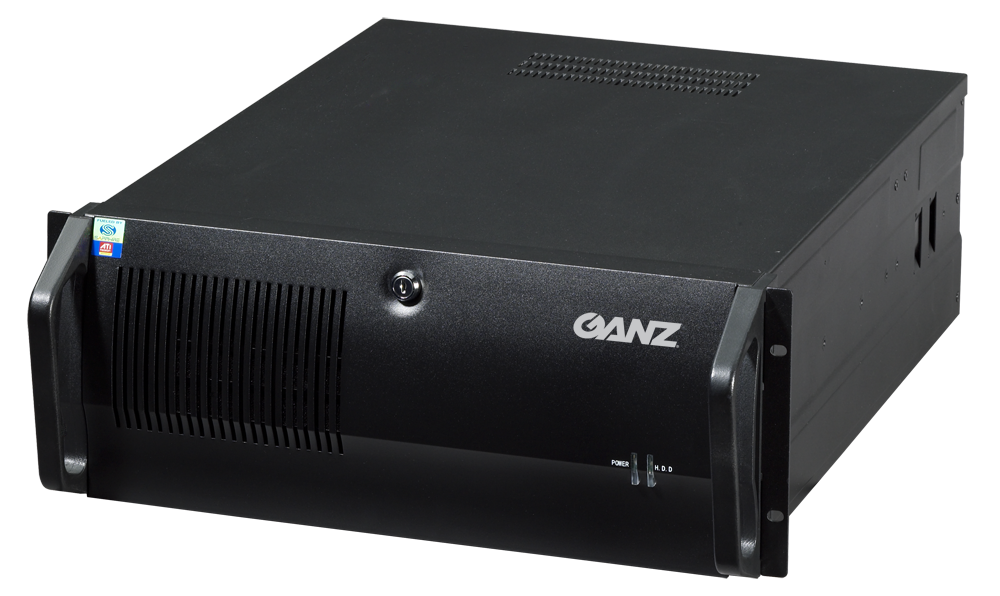

CBCA ZNR Series Video Server Hardware

ZNR 2U 2 to 10TB

ZNR 4U 2 to 10TB
ZNR 2U from 2 to 10TB - Top Front

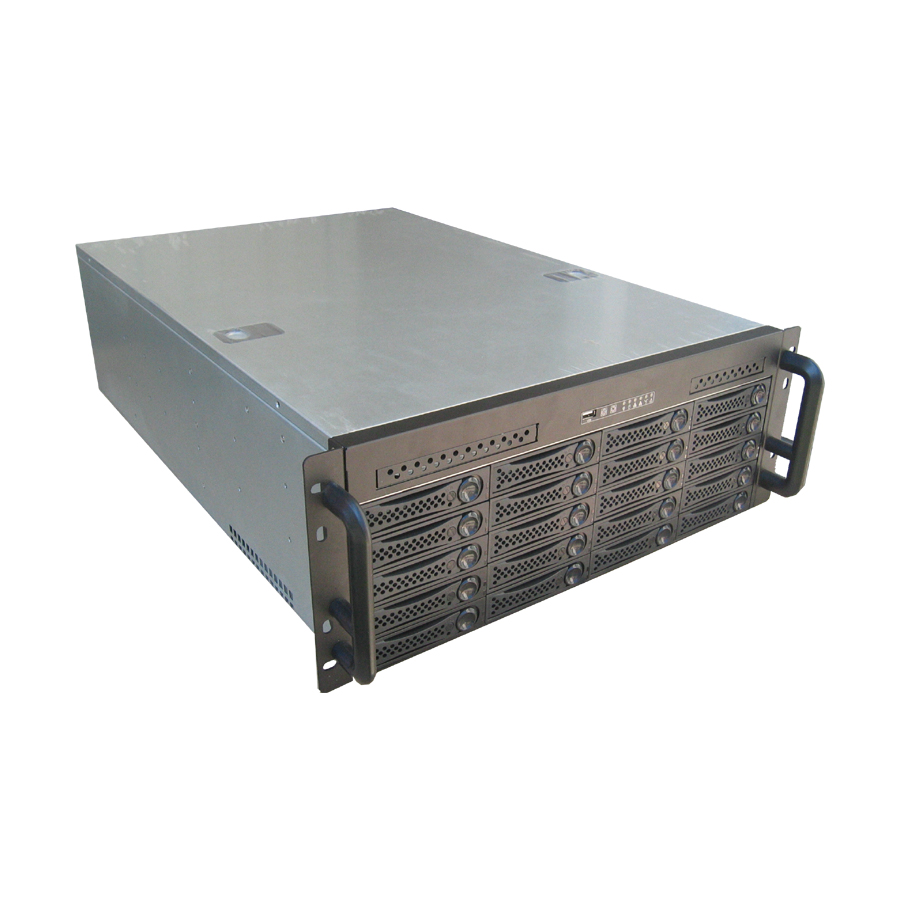

ZNR-4U-2 to 10TB also with 16 or 32 channel Hybrid option.


Front & back of 2U & 4U USB-RS232-RS485 Cable-Converter

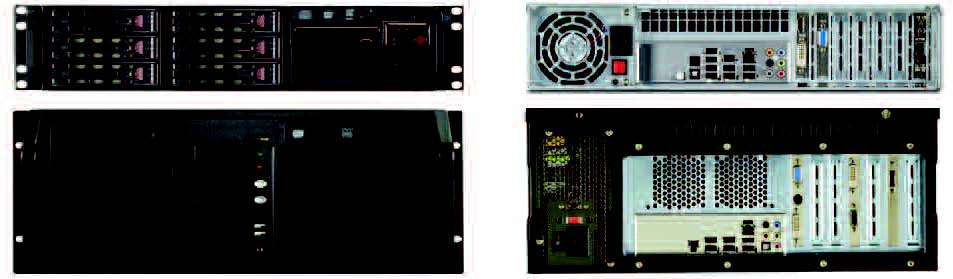

Front & back of 2U & 4U

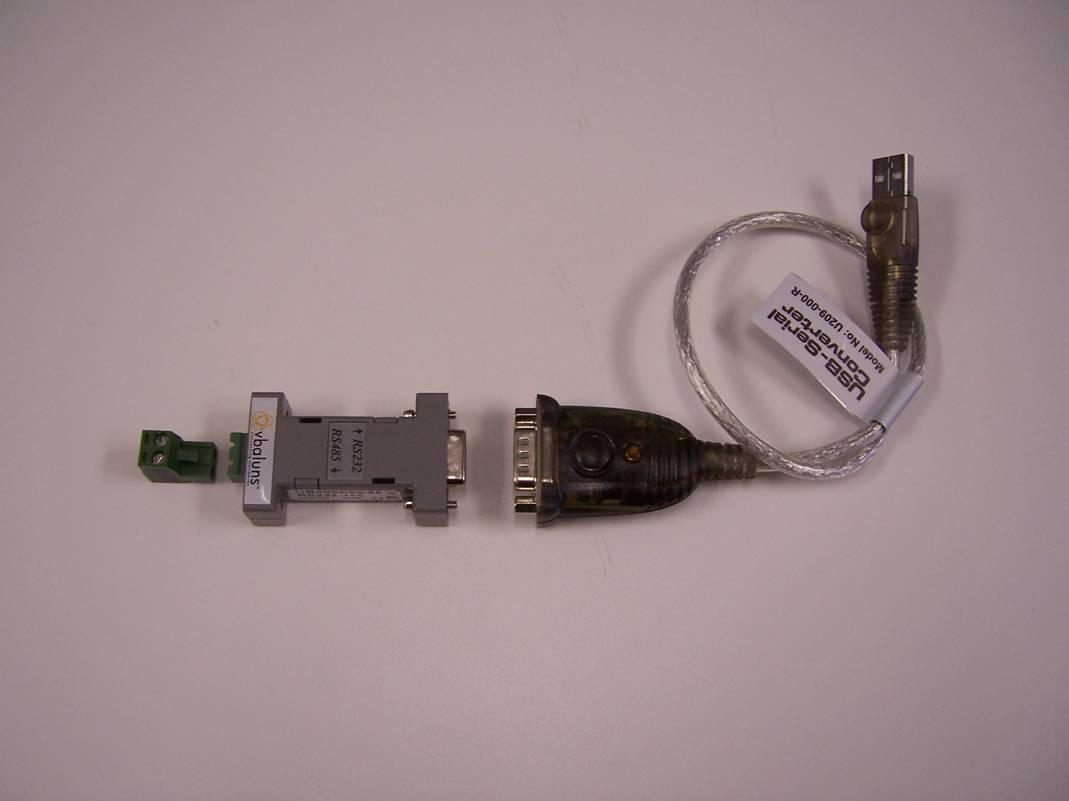

USB-RS232-RS485 Cable-Converter for PTZ cameras with the Hybrid option

Windows 7 (64bit) on an Intel i7. Will record up to 32 standard IP Cameras or up to 20 Megapixels in cameras. Note: MP8 cameras count as 4 cameras (a total of 8 Megapixels for each camera)

Drivers
  BIOS/Motherboard
    For the 4U & 2U ZNR's with the i7 CPU and the DP55WG motherboard for either the 32 bit or 64 bit versions of Windows 7:
    The latest BIOS Version is KGIBX10J.86A.5531 .
    To update, extract the files from CBC BIOS zip file then run KGxxxx.EXE. It will restart and flash the BIOS.
       Current Version:
            CBCBIOS_DP55WG_6_22_10.zip then run KG5531.EXE.
       Previous Version:
            CBCBIOS_DP55WG_4_20_10.zip then run KG4905.EXE.
   The latest MOBO Drivers can be found at Intel DP55WG Driver Updates. You should have LAN: Intel® PRO Network ver 15.3 or better.
   Intel® PRO Network ver 15.4 for Windows 7 NIC drivers DP55WG Lan Driver.zip.

  NIC
   Current Windows 7 Intel Pro 1000 NIC drivers PROWin32.exe.

  Hybyid Capture Cards
    HP4000EX H.264 board drivers V5.5.1.0.zip, Drivers for HP4000EX H.264 video capture board. For ZNSNVR 1.8.0 and later versions.
    HP4000EX H.264 board drivers V5.3.0.2.zip, Drivers for HP4000EX H.264 video capture board. For ZNSNVR 1.7.6 and earlier versions.
    XeCap_Drivers_3.12.12.63.zip, Drivers for XEcap200b Capture board drivers. For ZNSNVR 1.7.5 and earlier versions.

ZNR 12-44TB - RAID 5

ZNR 12-44TB - RAID 5

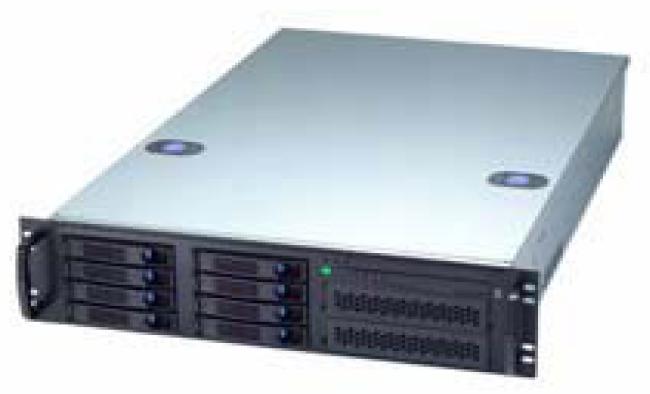

ZNR 12 to 44TB - RAID 5 Top Front

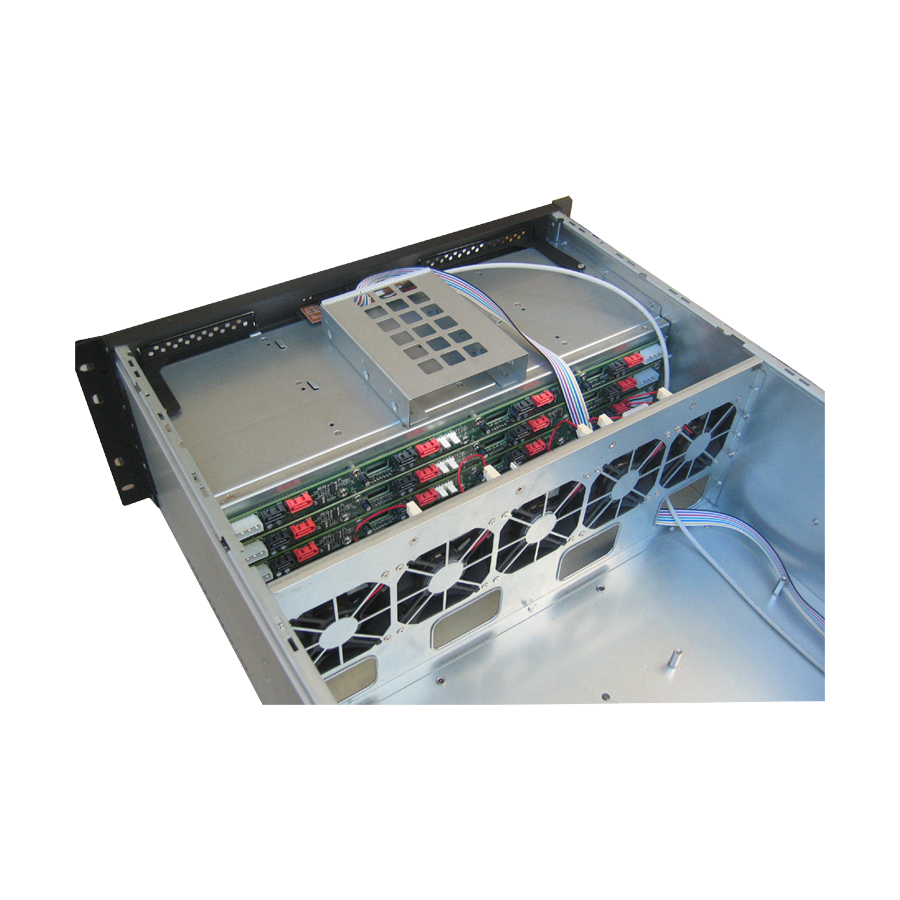

ZNR 2U 2 to 10TB - Top Rear

RAID Server Windows 7 (64bit) on (2) Intel Xeon Quad Cores.
Will record up to 64 standard IP Cameras or up to 48 Megapixels in cameras. Note: MP8 cameras count as 4 cameras

CBCA ZNS-NVR

The lastest ZNS is Version 1.8.4.507 Released 04/30/2011.

Spec Sheet Download ZNS-NVR_SP.pdf

Manual   ZNS-NVR_Manual-2008-01-10.pdf (4MB)
  ZNS_Quick_Start_Guide.pdf (633KB)
  Windows 7 NIC Work Network Setup.pdf (16KB)

Calculator ZNR_Storage_Calc-V1.23.xls (30KB) Beta 09-28-2010

    Download OpenOffice to use spreadsheet (it's Free)
Microsoft Excel Viewer 2003 to print blank form

Setup ZNR and ZNS for analog PTZ cameras   ZNR ZNSNVR USB-RS232-RS485 Setup.pdf

ZNS NVR Software Version 1.8.4 Server, Client, & Codec - ZNSNVR-1.8.4.507.zip 04/30/2011 (28MB)
Version 1.8.4 Codec - ZNSNVRCodecs-1.8.4.244.exe 03/21/2011 (3MB)

Version 1.8.4 Server, & Client - ZNSNVR-1.8.4.1295.exe 07/08/2011 (26MB) Beta

  1.8.x Upgrade Note: To upgrade from a 1.7.x, please follow these instructions:
    1) Uninstall your current ZNS software, but do not uninstall the database and License key when you're asked.
    2) Update the HP4000EX hybrid driver from the Device Manager under DVR Devices, if it's installed.
    3) Reboot the computer.
    4) Install the 1.8.x ZNS software and select Yes to use the Existing Database.

    Previous Versions
Version 1.8.4 - ZNSNVR-1.8.4.393.exe BETA 04/06/2011
Version 1.8.4 - ZNSNVR-1.8.4.61.exe BETA 02/22/2011
Version 1.8.2 - ZNSNVR-1.8.2.190.exe 02/02/2011
Version 1.8.2 - ZNSNVRCodecs-1.8.2.190.exe 02/02/2011

Version 1.7.6 - ZNSNVR-1.7.6.39664.exe BETA 11/12/2010
Version 1.7.6 - ZNSNVR-1.7.6.37997.exe 10/15/2010
Version 1.7.6 - ZNSNVRCodecs-1.7.6.37997.exe 10/15/2010

Version 1.7.5 - ZNSNVR-1.7.5.32190 08/11/2010 Recommend last for XEcap200b
Version 1.7.5 - ZNSNVRCodecs-1.7.5.31450.exe 05/07/2010

Version 1.7.5 - ZNSNVR-1.7.5.31450 05/07/2010
Version 1.7.5 - ZNSNVR-1.7.5.30990 04/30/2010
Version 1.7.5 - ZNSNVR-1.7.5.30235 04/09/2010
Version 1.7.5 - ZNSNVR-1.7.5.27821 02/17/2010
Version 1.7.5 - ZNSNVRCodecs-1.7.5.27821.exe 02/17/2010
Version 1.7.1.2 - ZNSNVR-1.7.1.22623.exe 09/17/2009
Version 1.7.1.2 - ZNSNVRCodecs-1.7.1.21178.exe

Version 1.7.1.2 - ZNSNVR-1.7.1.21567.exe 08/19/2009

Version 1.7.1.2 - ZNSNVR-1.7.1.21178.exe 08/03/2009

Version 1.7.1 - ZNSNVR-1.7.1.19802.exe
Version 1.7.1 - ZNSNVRCodecs-1.7.1.19802.exe

Version 1.6.14 - ZNSNVR-1.6.14.zip

Version 1.6.9 v2 - ZNSNVR-1.6.9.exe
Version 1.6.9 v2 - ZNSNVRCodecs-1.6.9.exe

How to upgrade ZNS NVR Server from Windows 7 32-bit to Windows 7 64-bit Upgrading ZNS NVR Server from Windows 7 32-bit to Windows 7 64-bit.pdf


Example Spreadsheet to help document your camera settings ZNS_Camera_Settings.zip

CBC VSoIP

Enterprise class NVR software.

VSoIP NVR Software Suite VSoIP Suite is available at http://vsoip.cbceurope.eu
VSoIP Developer tracking blog http://mantis.cbceurope.eu

SOFTWARE Versions:

VSoIP3.0.6720.107.zip (VSoIP Suite = Client + Server + NVR + Videowall + Display + VSoIPLite 76.7MB - BETA 08/31/2009)
v3.0.6720.107Docs.zip 08/31/2009 18.0MB

VSoIP Suite 3.0.6576.85 (Client + Server + NVR + Videowall + Display + Lite + release note - 75.0MB - BETA vers.)
VSoIP Suite 3.0.6390.49 (CD-ROM ISO image - 520MB) Complete Install Disk
VSoIP Suite 3.0.6390.49 (Client + Server + NVR +Videowall + + Display + release note + manuals - 66.5MB)
Updates manuals(Client + Server + NVR +Videowall + Display - 9,6MB) - 07/31/2009
List of supported devices: VSoIP Suite 3.0.6390.49 logging.zip download and unzip this file in your VSoIP directory and restart VSoIP Application in order to start generating logs for debug

PREREQUISITES:
Managed DirectX
Microsoft SQL EXPRESS
Microsoft Framework DotNet 2.0
Microsoft Framework DotNet 3.5
Microsoft SQL Manager

IPCAMERAS SCANNER:
IP-BASIC range: ZN-D2024, ZV-S306, ZN-PT304WL, ZN-YH305
IP-PRO range: ZN-T9000, ZN-L9000, ZN-C9000, ZN-T8000, ZN-C8000, ZN-L8000
IP-MEGAPIXEL range: MP1A, MP2A, MP3A, MP5A, MP1DN, MP2DN, MP3DN, MP5DN

TOOLS:
Amaya 11.0 XHTML MAP EDITOR
Sisualizer (SOFTWARE FOR VSoIP Dictionaries Translations)

Network Design

NetworkLayou Knowing your network will keep your users happy.

Camera Setup You should design your network such that the camera traffic does not interfier with the computer network.

Note: It is may be best to bench test or pre-configure your camera-server system inhouse with an Internet connection before installing in the field.

Megapixel Camera Network
Download Example Layout MegapixelCameraNetwork.pdf

Megapixel Camera Network
Download Example Layout ZNSServerSystemBranches.pdf

Mebgapixel Camera Network

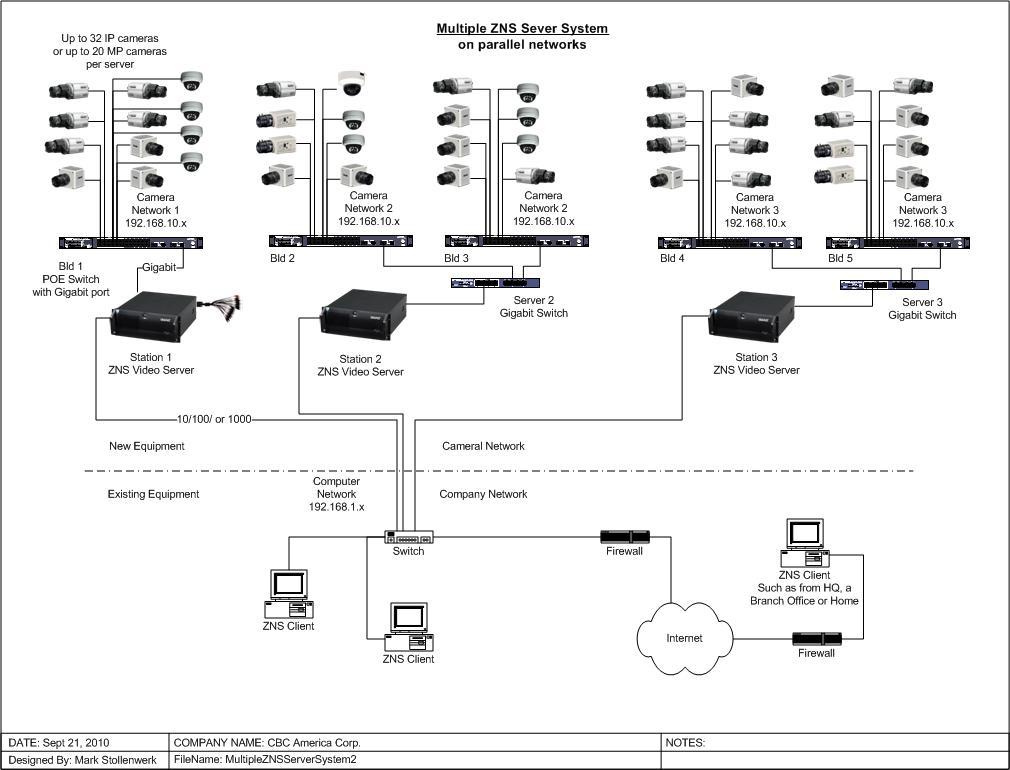

Download Example Layout MultipleZNSServerSystem2b.pdf

VSoIP NVR

Enterprise class NVR for more than 100 camera systems.

Camera Setup Design network such that the camera traffic does not interfere with the computer network.

Download Example Layout MegapixelCameraNetwork.pdf

FAQ

Some Helpful Hints

Keeping accurate time on windows XP On a windows XP system there are two clocks. One is hardware based on the motherboard that is read by the BIOS and the other is software based located in the windows operating system.
The BIOS Clock, also known as the Real Time Clock (RTC), is lousey at keeping accurate time because of temperature, voltage, pressure, and maybe phases of the moon. The windows clock initially gets its time during boot up from the BIOS. But this can be updated by third party NTP programs or by the built-in Internet time update in the windows clock.
If you are connected to the Internet, the windows Internet time will update once a week.
You can force an update by:

  • Right-clicking the time display,
  • choose "Adjust Date/Time,"
  • Select "Internet Time" Tab, be sure that "Automatically synchronize," is checked and then
  • Select "Update Now."
  • Select apply.
If you want to synchronize more than once a week:
  • Run Regedit (NOTE: Running regedit can be very damaging to your system if you make any mistakes. Backup the registery first.)
  • Find the registry key HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Services\W32Time\TimeProviders\NtpClient
  • Select "SpecialPollInterval"
  • Change decimal value in seconds for how often you want to synchronize the time,
    • 1 hour = 3600 seconds
    • 1 day = 86400 seconds
  • Exit Regedit

Recomended Network Layout Design network such that the camera traffic does not interfier with the computer network.

Download Example Layout MegapixelCameraNetwork.pdf

Security Center and rundll32.exe troubles If you have an Intel Motherboard and Windows Security Center doesn't open and you have problem shutting down Windows with rundll32.exe requiring "End Now," the high definition Control panel applet may be the the cause.


Other Camera Software


DDK-1500 IP Camera Software (extract before running)     Current Version IP-SurveillanceV2.3.zip
    Previous Version CD v2.1.zip

DDK-1500D Firmware
    DDK1500D_v1.53.zip 04-19-2010
    DDK1500D_v1.42.zip 10-02-2009

DDK-1500 Firmware
    DDK1500_v1.53.zip 04-19-2010
    DDK1500_v1.43.zip 04-08-2009
    DDK1500_v137.zip 10-09-2008

    SDK for IPX DDK1000, IPX DDK1200, IPX DDK1500, and IPX DDK1500D cameras IPXSDK_0.7.zip.

IP PTZ     Download PT110_IPManual.pdf
    Download PT127XT_IPManual.pdf

ZN-BT3312, ZN-D2024, ZN-PT304, ZN-YH305, & ZV-S306 IP Camera Software     Camera Docs, Camera Finder & Recording Software Ganz_v1.20E.zip 83MB
    Camera Finder Software Ganz_v1.2_0CameraFinder.zip 3MB

Sample webpage code to view live video from N-BT3312, ZN-D2024, ZN-PT304, ZN-PT304, ZN-YH305, and ZV-S306 cameras.     View code from SampleWebpage.htm. Change the IP address (and port if necessary).

ZN-D9312NHA IP Dome Camera     ZN-D9312NHA_CameraFinder.zip 1MB 05-29-2009
    or Complete CD with free MSS recording software: ZN-D9312NHA_CD.zip 280 MB 05-29-2009

DirectX End-User Runtime Web Installer     This Runtime provides updates to 9.0c and previous versions of DirectX.
      DirectX End-User Runtime Web Installer. (This is a Microsoft.com site.)

Codecs from the internet     Here is a Codec file I found that you might find useful if nothing else works klmcodec434.exe.
